Extrusion Screws througput
Extruder #1 througput is known. This tool can calculate througput of extruder #2 in the same working conditions : polymer, pressure, temperature. This is a practical method as decision-making tool.
Screw #1
D1 = barrel diameter
L1 = lead length L/D
N1 = speed rev/min
Q1 = througput kg/h
Screw #2
D2 = barrel diameter
L2 = lead length L/D
N2 = speed rev/min
GO!
Q2 = througput kg/h

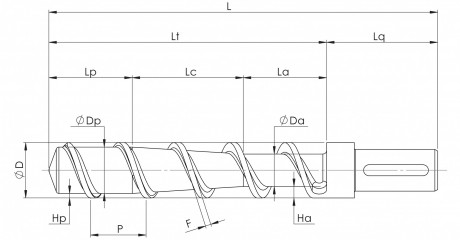

Legend
L
total length
Lt
lead length L/D
Lq
drive shaft length
La
feeding zone length
Lc
transition zone length
Lp
metering zone length
P
flight pitch
F
flight width
Ha
feeding depth
Hp
metering depth
